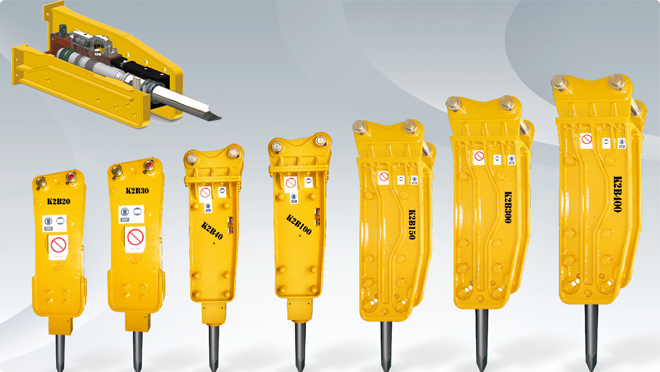

Description K2B15 K2B20 K2B30 K2B35 K2B40 K2B100 Operating Weight (Including tool + Mountcap) kg 110 150 330 420 530 880 Overall Height With Mountcap mm 1.113 1.306 1.393 1.678 1.979 2.298 Without Mountcap mm - - -   - 2.023 Operating pressure bar 80~110 90~120 90~130 100~130 130~150 150~170 Required Oil Flow lpm 20~30 20~50 30~50 40~80 45~90 80~100 Impact rate bpm 600~1.200 500~1.200 450~900 450~900 450~800 450~800 Impact power joule 400 480 849 1.210 1.764 2.443 Tool Diameter mm 45 53 68 75 85 100 Hose Diameter inch 1/2"(13) 1/2"(13) 1/2"(13) 1/2"(13) 1/2"(13) 3/4"(19) Applicable excavator ton 0.8~3.0 1.0~3.5 2.0~7.0 3.5~9.0 6.0~11.0 9.0~12.0 Description K2B150 K2B180 K2B220 K2B300 K2B320 K2B400 Operating Weight (Including tool + Mountcap) kg 1.580 1.870 2.480 3.140 3.500 4.120 Overall Height With Mountcap mm 2.480 2.773 3.046 3.281 3.261 3.758 Without Mountcap mm 2.120 2.413 2.686 2.839 2.938 3.316 Operating pressure bar 150~180 160~180 160~180 160~180 160~180 160~180 Required Oil Flow lpm 90~120 130~150 190~250 190~250 190~250 250~310 Impact rate bpm 400~900 400~800 350~700 300~600 300~600 250~450 Impact power joule 4.234 5.290 7.200 9.970 11.200 13.125 Tool Diameter mm 120 130 150 160 155 180 Hose Diameter inch 1"(25) 1"(25) 1"(25) 1 1/4"(32) 1 1/4"(32) 1 1/4"(32) Applicable excavator ton 13.0~18.0 18.0~26.0 28.0~35.0 33.0~50.0 33.0~50 45.0~55.0 Above specifications are subject to change without notice.

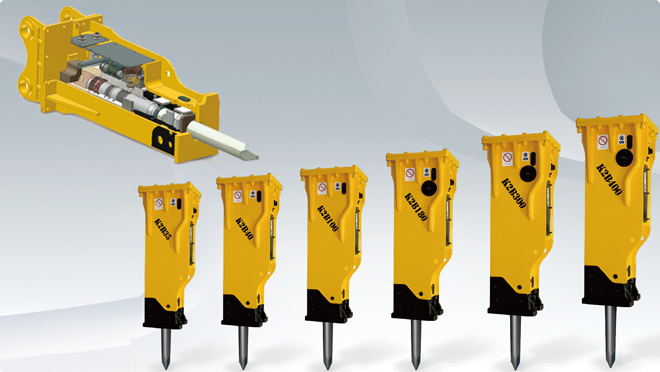

Description K2B15 K2B20 K2B30 K2B35 K2B40 K2B100 Operating Weight (Including tool + Mountcap) kg 130 260 370 410 580 940 Overall Height With Mountcap mm 1.350 1.586 1.586 1.729 1.946 2.338 Without Mountcap mm 1.110 1.220 1.386 1.479 1.726 2.053 Operating pressure bar 80~110 90~120 90~130 100~130 130~150 150~170 Required Oil Flow lpm 20~30 20~50 30~50 40~80 45~90 80~100 Impact rate bpm 600~1.200 500~1.200 450~900 450~900 450~800 450~800 Impact power joule 400 480 849 1.210 1.764 2.443 Tool Diameter mm 45 53 68 75 85 100 Hose Diameter inch 1/2"(13) 1/2"(13) 1/2"(13) 1/2"(13) 1/2"(13) 3/4"(19) Applicable excavator ton 0.8~3.0 1.0~3.5 2.0~7.0 3.5~9.0 6.0~11.0 9.0~12.0 Description K2B150 K2B180 K2B220 K2B300 K2B320 K2B400 Operating Weight (Including tool + Mountcap) kg 1.422 1.800 2.277 2.900 3.320 4.100 Overall Height With Mountcap mm 2.440 2.640 2.904 3.258 3.281 3.726 Without Mountcap mm 2.090 2.320 2.574 2.859 2.938 3.291 Operating pressure bar 150~180 160~180 160~180 160~180 160~180 160~180 Required Oil Flow lpm 90~120 130~150 190~250 190~250 190~250 250~310 Impact rate bpm 400~900 400~800 350~700 300~600 300~600 250~450 Impact power joule 4.234 5.290 7.200 9.970 11.200 13.125 Tool Diameter mm 120 130 150 160 155 180 Hose Diameter inch 1"(25) 1"(25) 1"(25) 1 1/4"(32) 1 1/4"(32) 1 1/4"(32) Applicable excavator ton 13.0~18.0 18.0~26.0 28.0~35.0 33.0~50.0 33.0~50 45.0~55.0 Above specifications are subject to change without notice.

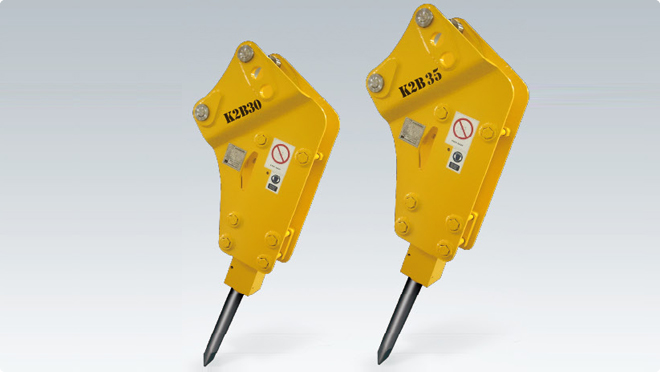

Description K2B30BL K2B35BL Operating Weight(including tool) kg 372 417 Operating pressure bar 90~130 100~130 Required Oil Flow lpm 30~50 40~50 Impact rate bpm 450~900 450~900 Impact power joule 849 1.210 Tool Diameter mm 68 75 Hose Diameter inch 1/2"(13) 1/2"(13) Suitable Machine ton 2.0~7.0 3.5~9.0 Above specifications are subject to change without notice.

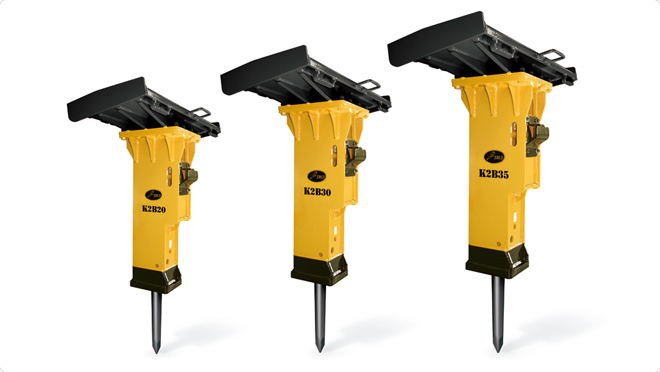

Description K2B20SL K2B30SL K2B35SL Operating Weight (Including tool + Mountcap) Bracket,Box (low noise) kg 295 390 505 Overall Height mm 1.398 1.572 1.700 Operating pressure bar 90~120 90~130 100~130 Required Oil Flow lpm 20~50 30~50 40~80 Impact rate bpm 550~1.200 450~900 450~900 Impact power joule 480 849 1.210 Tool Diameter mm 53 68 75 Hose Diameter inch 1/2"(13) 1/2"(13) 1/2"(13) Suitable Machine ton 1.0~3.5 2.0~7.0 3.5~9.0 Above specifications are subject to change without notice..

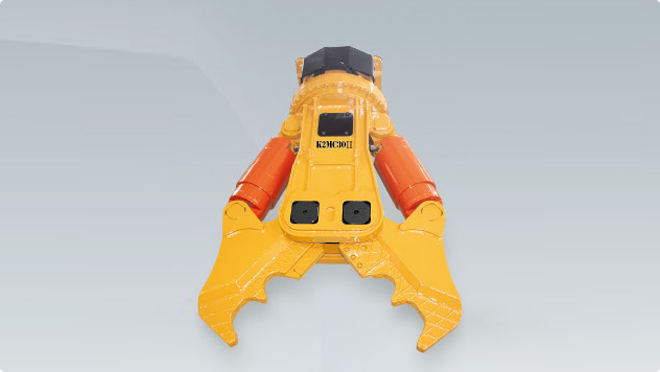

Description K2MC20Ⅱ K2MC30Ⅱ Operating width of jow mm 886 1.163 Operating Weight kg 1.690 2.930 Cutting Force ton 183 317 Operating Pressure bar 300 320 Suitable Machine ton 18~26 26~36 Above specifications are subject to change without notice..

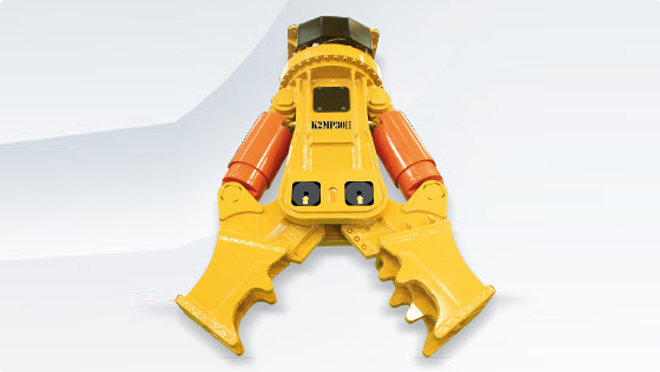

Description K2MP20Ⅱ K2MP30Ⅱ Operating width of jow mm 886 957 Operating Weight kg 2.000 2.600 Cutting Force ton 165 229 Operating Pressure bar 300 320 Suitable Machine ton 18~26 26~32 Above specifications are subject to change without notice..

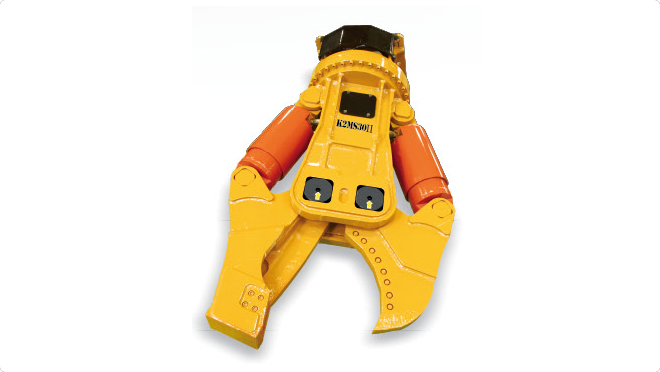

Description K2MS20Ⅱ K2MS30Ⅱ Operating width of jow mm 507 571 Operating Weight kg 2.000 2.450 Cutting Force ton 172 256 Operating Pressure bar 300 320 Suitable Machine ton 18~26 26~32 Above specifications are subject to change without notice..

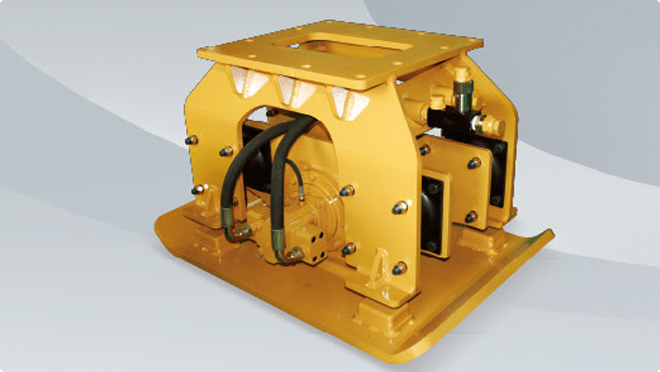

Description K2VC30 K2VC60 K2VC80 K2VC100 K2VC120 Impulse Force ton 2~3 5~6 7~8 9~10 11~13 Impact Rate bpm 2.400 2.400 2.400 2.400 2.400 Operating Pressure bar 100~130 120~160 14~180 150~210 150~210 Oil Flow lpm 60 120 150 160 170 Base Plate Dimension mm 800x500 850x600 1.100x750 1.25x850 1.250x850 Weight Direct Type kg 250 600 700 800 900 Weight Mount Type kg 300 675 800 925 1050 Compaction Area m3 0.2 0.6 0.8 1.0 1.2 Suitable Base Machine ton 2~7 8~17 18~26 28~30 28~40 Above specifications are subject to change without notice..

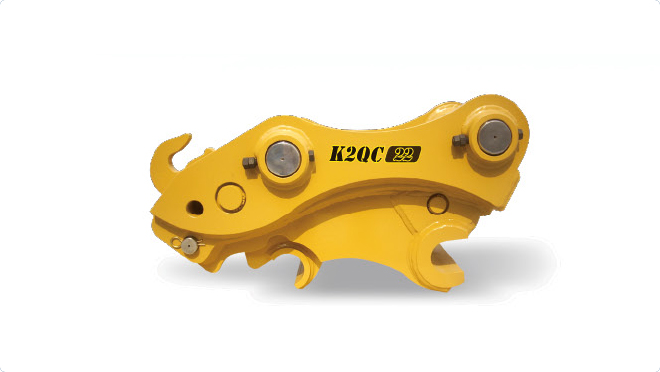

Description K2QC 5 K2QC 13 K2QC 22 K2QC 30 K2QC 40 Operating Weight kg 50~60 120~130 280~290 420~430 530~550 Operating Pressure bar 40~380 40~380 40~380 40~380 40~380 Oil Flow lpm 10~20 10~20 10~20 10~20 10~20 Applicable Limits mm 230~280 380~420 455~485 490~545 530~610 Dimesions (lenght*width*height) mm 543x306x225 765x388x346 925x493x414 1020x575x508 1270x625x550 Suitable Base Machine ton 3~5 7~15 18~26 27~30 29~40 Above specifications are subject to change without notice..
